Thinking about getting a second monitor for gaming and streaming? But you’re not sure if you really need a dual monitor setup since top gamers like PeterBot still plays well with just one?

It’s easy to get mixed up here. But let’s be honest: when you’re streaming, you can’t afford to miss sub alerts or raids, right? And trying to keep track of everything on one screen can get cluttered.

So, is a two-monitor setup the answer? Let’s find out. This article will show you why dual monitors matter and how to set them up. Let’s dive in!

Why Use a Two-Monitor Setup?

Before we learn how to set up dual monitors, let’s find out why we might want to do that:

1. Uninterrupted Full-Screen Play

Relying on one monitor forces you to flip between your game and messages. This can make you miss those vital in-game moments.

In games like CS:GO, where every second counts, you could miss an enemy sneaking up or a teammate calling out the last enemy.

It can even crash your game, especially in titles with strict window switching ike Dota 2 or League of Legends.

Dual monitor setup fix all that with better productivity You can keep your game full-screen on one, and your chat, streams on the other.

2. Faster Viewer Response

Trying to keep up with chat on one monitor is a struggle. Messages get buried behind your game, forcing constant alt-tabbing to check for simple replies.

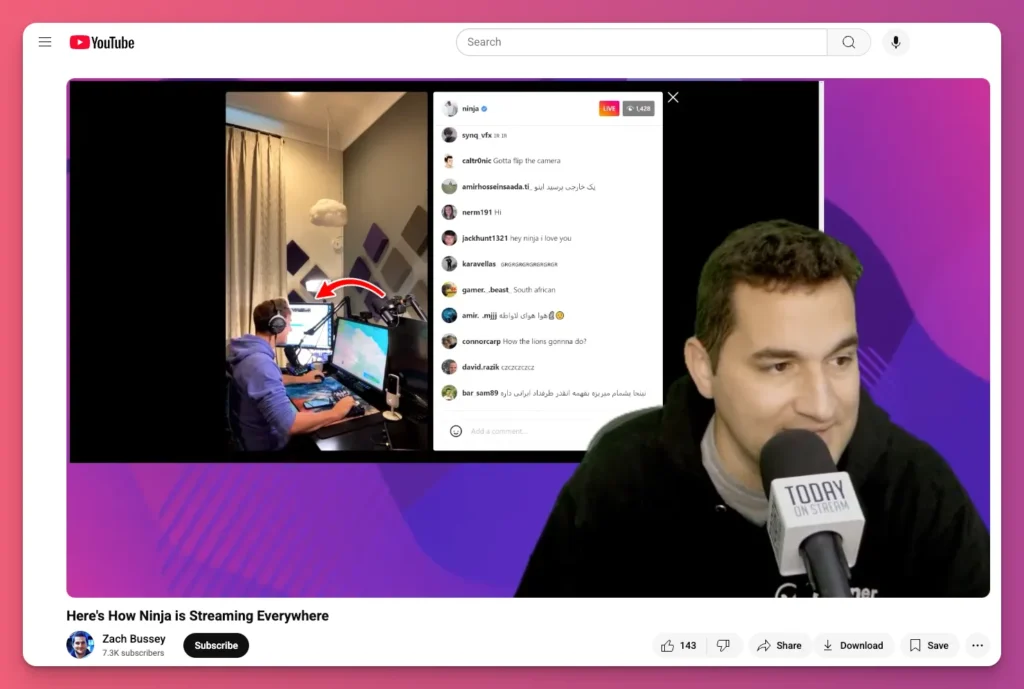

A dual monitor setup solves this by putting chat on a second screen, so it’s always visible without messing up your game.

This makes for quick replies, keeping viewers hooked and the chat buzzing. Streamers like Ninja use this trick.

Image: YouTube Zach Bussey

3. Better Stream Control Access

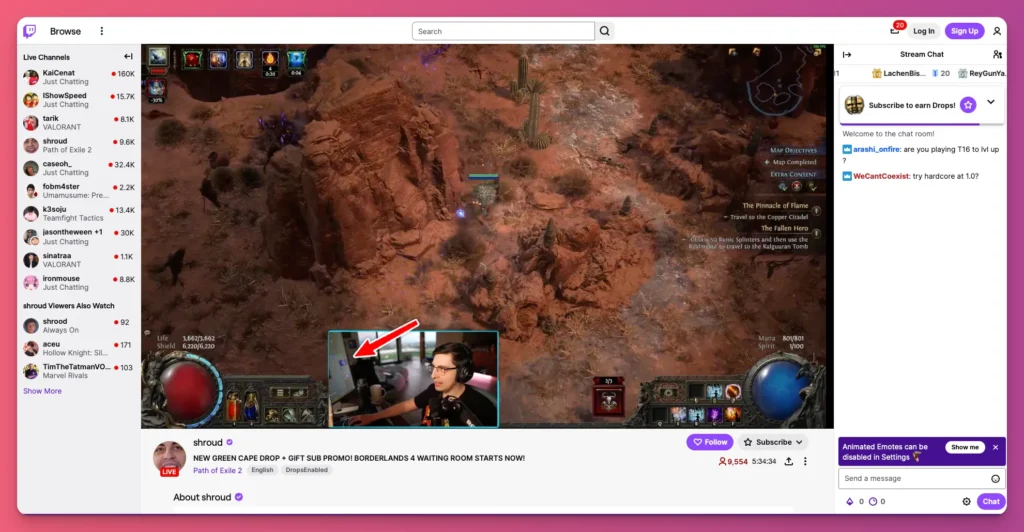

Seriously into streaming? A second monitor is a must-have for your game streaming setup. It handles your controls, so you can focus on your content and audience.

Without it, you’re forced to switch scenes or adjust settings while potentially exposing your OBS controls. This can lead to accidental reveals, or even stream crashes.

Image: Twitch Shroud

And if your tech has problems, having two monitors is helpful for fixing things fast and saving your stream from crashing.

Related: Best Live Streaming Software

4. Great Livestream Experience

A dual monitor setup gives your alerts their own space. So you’ll see every new sub, donation, or raid right away.

This way, you stay in touch with your audience, don’t miss any conversations, and help your community grow. A quick “Thanks, John” or a subscriber shout-out makes viewers feel appreciated.

That instant recognition keeps your stream lively and turns casual viewers into total fans.

5. Stream Health Oversight

Just like a race car driver without a dashboard, unmonitored streams risk unnoticed issues. That makes you vulnerable to sudden problems.

Want to avoid crashes and lag? Keep an eye on your system stats with a dual monitor setup. It helps you spot drops in frame rate, high CPU/GPU usage, or internet issues instantly.

6. Safer Window Management

Remember when Ninja accidentally showed his Twitch earnings? This showed how easily one mistake can expose private information. And using only one monitor makes this risk even higher.

Sure, a dual-monitor setup isn’t perfect. But it can reduce the risk of accidental exposure. Use one screen for your stream and the other for personal or sensitive information. And keep them separate.

Related: How to Improve Stream Quality

Things to Consider About Dual Monitor Setup

Before you get your dual monitor setup going, here are some key things to keep in mind first:

1. GPU Capability

First, look at your computer’s graphics card (GPU). Before you even think about a dual monitor setup, you need to know if your GPU can handle it.

Turn your PC around and find the video ports. You’ll need at least two. Don’t worry, most new graphics cards have enough ports.

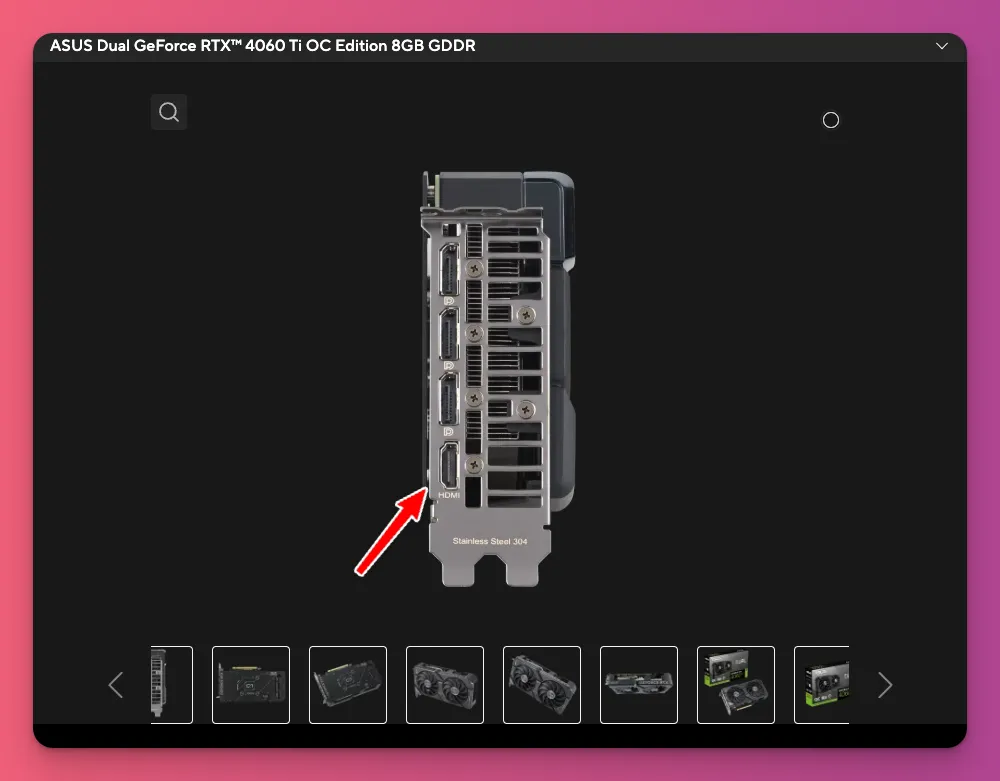

For example, a common card like the NVIDIA GeForce RTX 4060 Ti usually has three DisplayPort 1.4a and one HDMI 2.1 port, offering many choices.

If your PC only has one port, you’ll need to replace the graphics card.

2. Connectivity

Is your GPU reliable? Great. Now, check the ports on your GPU and make sure that your monitor has the same port.

For your main gaming display like ASUS ROG Swift OLED, you can use DisplayPort for its full 240Hz refresh rate. And for your other monitor, an HDMI cable is fine for showing your stream chat.

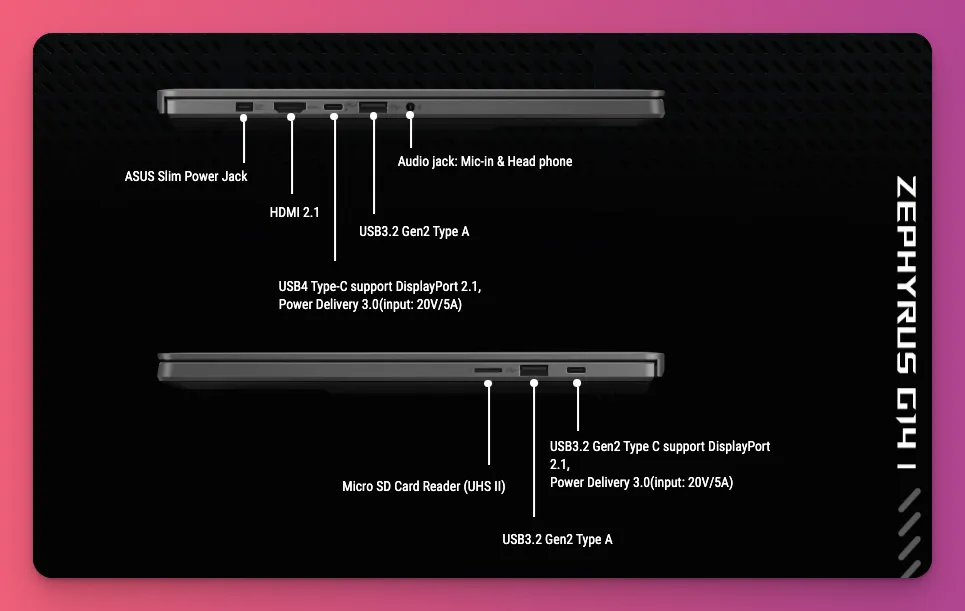

If you’re streaming from a laptop, like a Razer Blade, you’ll likely need a USB-C docking station. This gives you extra HDMI or DisplayPort outputs for a dual-monitor setup.

3. Size and Resolution

For a dual monitor setup, think about their size and resolution, too. This choice matters for how you’ll use them.

Do you want both to be the same size and resolution, or mix and match?

A simple, clean setup like AuronPlay’s often features two identical 27-inch 1440p monitors. It looks great on camera, too.

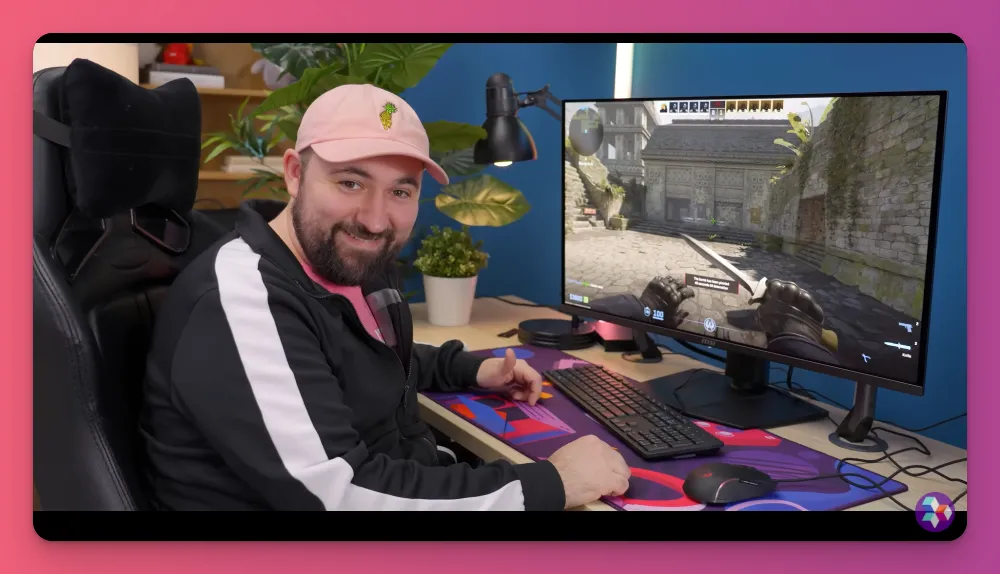

But for practicality, many Twitch streamers use a mixed setup: the MSI MPG 321URX for stunning 4K visuals, plus a budget 24-inch 1080p monitor from AOC for OBS and chat.

Image: YouTube ShortCircuit

Related: Multicamera Live Streaming

4. Refresh Rates

For gaming, don’t overlook the importance of refresh rate. Your main gaming monitor should be at least 144Hz. This will offer a smoother and more responsive gaming experience.

But does your secondary monitor really need all that? No. A regular 60Hz or 75Hz monitor is perfectly fine for your second screen.

Could mixing different refresh rates cause stuttering? It can, but Windows updates and better GPU drivers have reduced the problem.

Also, using G-Sync or FreeSync on your main screen can help prevent screen tearing and make gameplay smoother.

5. Bezel Width

You don’t want to choose the perfect resolution and size only to realize the bezel is so thick it messes up your gaming stream. It might seem small, but a thin bezel makes a huge difference.

With dual monitor setup side-by-side to extend your display, the bezels create a black bar in the middle. Think about that before you buy your second monitor or set everything up.

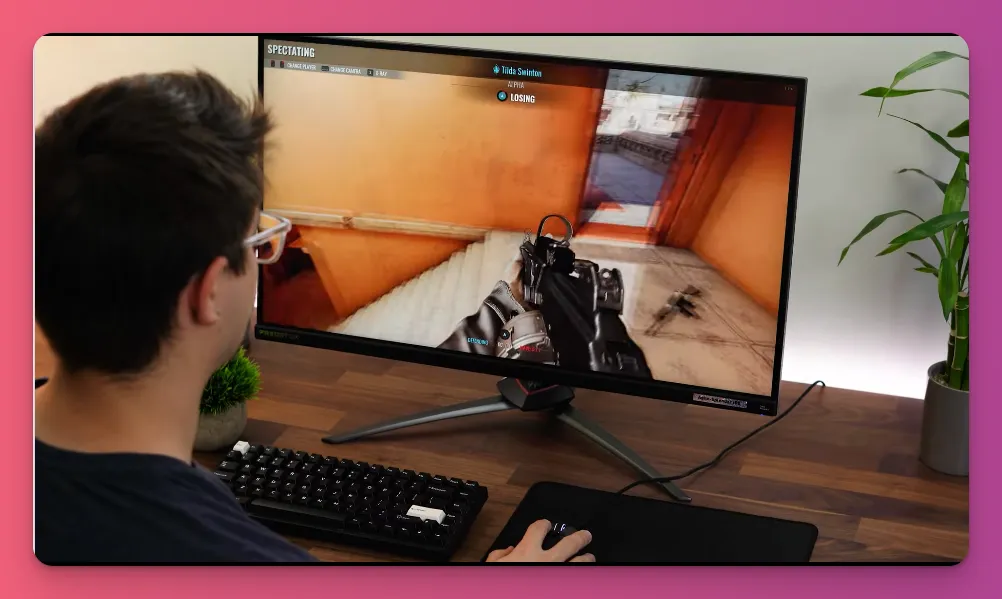

Luckily, monitors like the Acer Predator XB283K have very thin bezels to reduce gaps. This makes them look almost seamless when placed next to each other.

Image: YouTube ConsumerTechReview

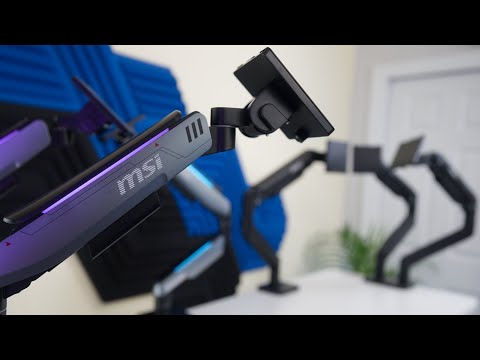

6. Mounts

You don’t just stream for an hour. Sometimes, you’re in a subathon that goes on for hours or even days.

That’s why a good ergonomic dual monitor setup is important. It keeps you comfortable during those long sessions.

So, instead of standard stands, a strong dual mount lets you set your screens to the perfect height, distance, and angle. With tilt, swivel, and rotation, you can adjust your setup to suit your body.

Just make sure your monitors are VESA-compatible. You can check for four screw holes on the back.

7. Setup Orientation

How you set up your screens is a big deal for making your dual-monitor setup feel right. It’s all about making a space that works for your streaming style.

There’s no one perfect way, but these are the most popular layouts you’ll see on Twitch and YouTube:

  • Side-by-Side — This simple, versatile setup features two side-by-side monitors in landscape mode. This dual monitor setup is the go-to for streamers and gaming content creators. While gaming, you can keep a guide open, like an Elden Ring map, within easy reach.

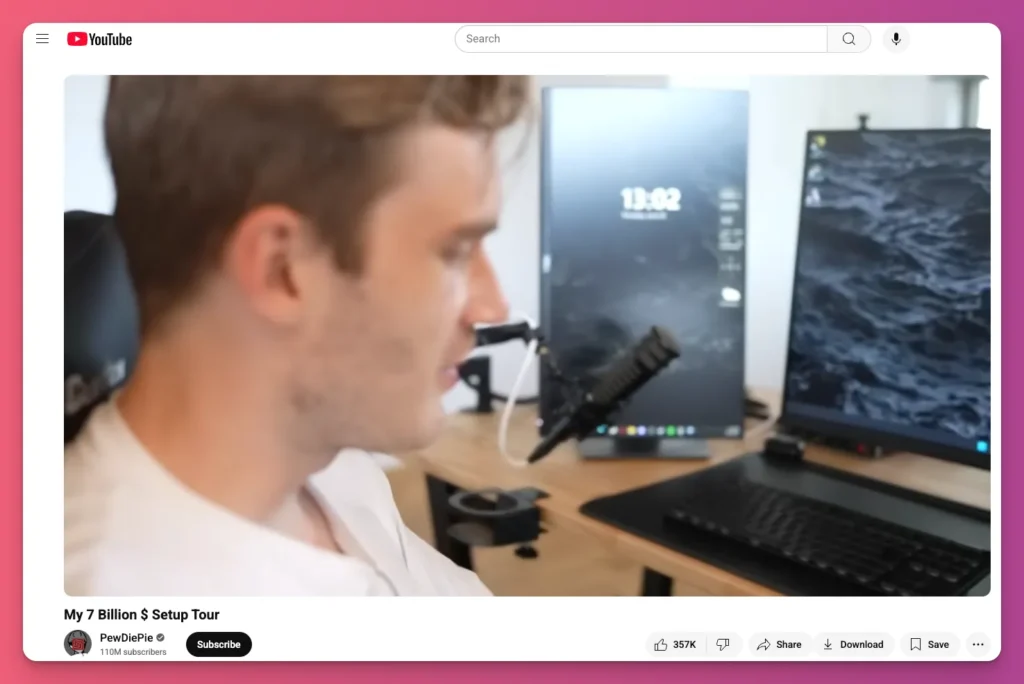

  • Landscape + Portrait — This layout is popular for a reason. Top streamers like Pokimane, Valkyrae, and Pewdiepie have helped make it so. Your main monitor stays horizontal, while a second monitor sits vertically beside it. The vertical screen makes reading chat much easier.
  • Stacked Monitors — For limited space or a cockpit feel, stacking monitors works well. Use a tall mount to place the secondary above the main, keeping the primary centered to reduce neck movement. Many sim streamers favor this setup for quick access to maps, gauges, and chat, mimicking a real cockpit.
Image: YouTube Pewdiepie

How to Set Up a Dual Monitor With a PC

Once you have everything you need, its time to connect your monitors to your gaming PC. Here’s how to do it:

1. Clean Your Desk

  • Type: Preparation

You won’t get that perfect dual monitor setup if your desk is a mess. The last thing you want is to be adjusting your new 27-inch OLED monitor and accidentally trip over a loose cable, making it fall.

Before unboxing, clear the deck. Wipe the surface and take away anything you don’t need. It’s not just about keeping things neat. It also helps prevent expensive mistakes.

2. Prepare Your Monitors

  • Type: Preparation

This is the moment you’ve been waiting for. Lay the box flat and open it gently. Inside, you’ll find the screen, stand, power cable, and probably a DisplayPort or HDMI cable.

Next, grab the included monitor stand. Most stands just click or screw into the back of the monitor. Make sure to attach it securely.

3. Install the Monitor Mount

  • Type: Hardware Setup

If you want to boost your dual monitor setup’s flexibility, make sure your monitors are VESA compatible. That’s the four-hole square pattern on the back (100x100mm or 75x75mm).

Once you’re sure, install the mount. Brands like Ergotron make solid desk-clamp and grommet mounts. For most desks, the clamp is the easiest option. You can just tighten it onto the back edge.

4. Attach Monitors to the Mount

  • Type: Hardware Setup

Once your mount is secured, it’s time to hang the screens. Asking a friend to help makes it much easier because holding the monitor and lining up the screws at the same time can be hard.

First, attach the VESA plate to the back of each monitor. Tighten the screws, but not too much.

Then, lift the first monitor and slide or click the VESA plate onto the arm until it clicks or feels secure. Give it a gentle shake to make sure it’s locked in tight.

5. Position Your Screens

  • Type: Hardware Setup

It’s time to set up your monitors based on your preferred layout. Keep your main monitor directly in front of you, with the top at eye level.

If you use side-by-side horizontal screens, line them up at the same height. Make them close enough to avoid turning your head much, but not so close that your eyes tire.

If you prefer a mix of horizontal and vertical monitors, place the vertical one directly beside your main screen at a comfortable height. Adjust the tilt and angle to minimize glare and reflections.

6. Manage Your Cables

  • Type: Hardware Setup

Once your screens are ready, power them on and connect the video cables. Use DisplayPort for your main gaming monitor to the GPU, and HDMI or DisplayPort for the secondary monitor.

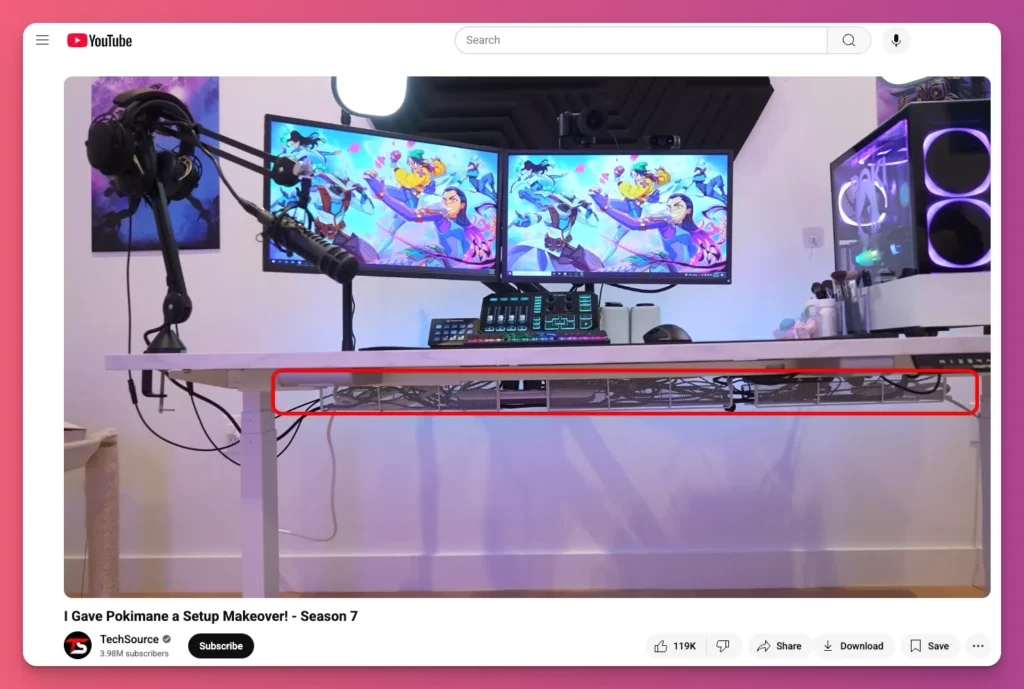

Now, let’s talk about cable chaos. Tangled wires clutter your stream, attract dust, and risk accidents. The worst is tripping over a loose cable during a VALORANT match.

Keep it tidy by using the built-in channels on your monitor arms to hide your cables. Wrap them with Velcro ties or a cable sleeve, then hide everything behind your desk.

Image: YouTube TechSource

7. Extend Your Display

  • Type: Software Setup

The hardware’s good to go. Now, boot up your PC and let Windows know about your dual monitors.

You can right-click on your desktop and choose Display settings. In the Multiple displays dropdown, change Duplicate these displays to Extend these displays.

Then, choose your main monitor. Scroll down and check Make this my main display to make sure Windows launches games, apps, and the taskbar on that screen every time.

8. Set Up Your Resolution and Refresh Rate

  • Type: Software Setup

This is the moment that separates beginners from experts. You have a 144Hz monitor, but it’s probably only running at a simple 60Hz when you first use it. Let’s fix that.

In the Display settings window, select choose your main gaming monitor. Make sure the resolution is set to its native setting, like 1920 x 1080 or 2560 x 1440.

Then, click on Advanced display and select Choose a refresh rate. Pick the highest option available, like 144Hz or 240Hz. Your screen will flicker, confirm by clicking Keep.

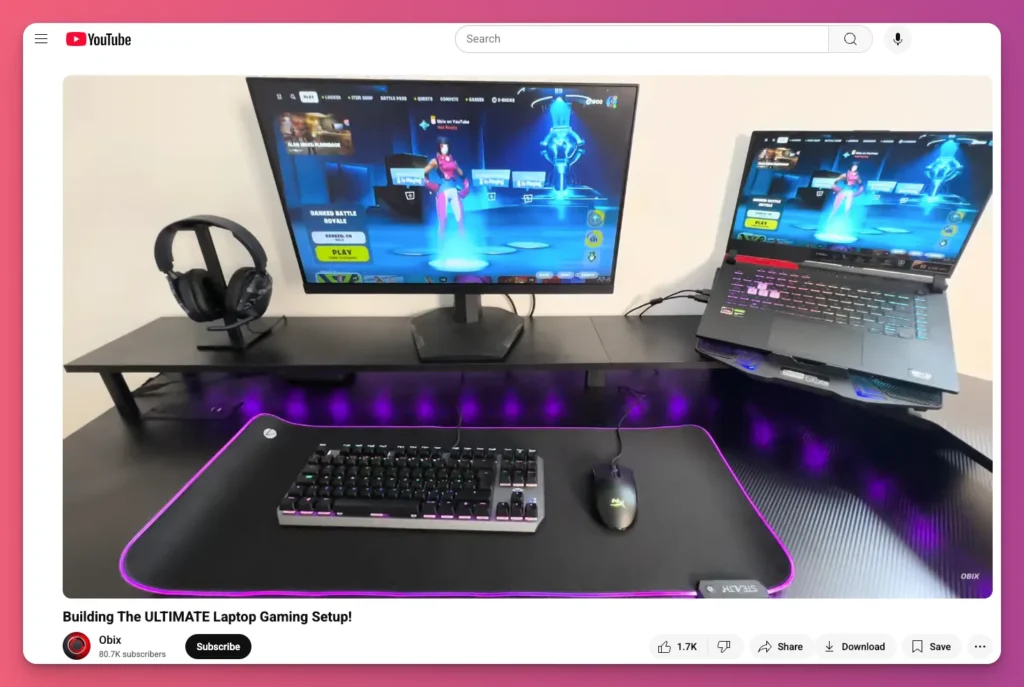

Dual Monitor Setup Using a Laptop

Basically, setting up a dual monitor with a laptop is the same as doing it with a PC:

  1. Check your laptop’s ports — Look at the sides for available video options. Most newer models have HDMI and USB-C, with some supporting Thunderbolt for video.
  2. Check your external monitor ports — Make sure your monitors have the right input options that match what your laptop or docking station can send. HDMI and USB-C are the common types.
  3. Connect the first monitor directly to your laptop — If your laptop has a dedicated video port like HDMI, just plug in your first monitor there. It’s the easiest way to get started.
  4. If needed, connect a docking station or USB-C hub — Laptops don’t come with enough ports, so plugging in a docking station or USB-C hub can help to boost your connectivity.
  5. Connect the second monitor to the docking station — Use an available HDMI or DisplayPort on your docking station to connect your second external monitor.
  6. Power on the laptop and both monitors — Turn on your external monitors first, then turn on your laptop. This helps Windows recognize the screens when it starts.
  7. Set up Display — When your laptop is on, right-click on an empty space on the desktop and select “Display settings” to open the menu.
  8. Extend these displays — Use the shortcut Windows + P, then change the setting from Duplicate to Extend.
  9. Make this my main display — Choose the screen you want as your main one in this dual monitor setup. That is where your taskbar and new apps will show up by default.
  10. Set the correct resolution and refresh rate — For each external monitor, click Advanced display, and set the resolution to its native setting and the highest supported refresh rate.
Image: YouTube Obix

Wrap Up

Dual monitors are great for streaming. They let you focus on your gameplay while keeping chat, alerts, and streaming tools like OBS Studio right at your fingertips.

You’ve learned about dual monitor setups, right? Keep in mindt to match the resolution and refresh rate for both screens. Lus, choose a layout that makes streaming comfortable.

That’s it for now. We hope this helps you level up. And if your stream gets better and your fans like your content, think about making money from platforms like YouTube or Twitch.

Or you can join Gank, where you can make money from fans donations, merch sales, and commissions.

FAQ About Dual Monitor Setup

Do you need a good PC to run two monitors?

Most PCs and laptops with built-in graphics can handle a dual monitor setup. For gaming, or streaming, you’ll want to upgrade to a GPU with more VRAM and cores, like Nvidia’s RTX 40 or RX 7000 series.

And don’t forget a decent CPU, like an Intel Core i5/i7 or AMD Ryzen 5/7. They’ll make sure everything runs smoothly when you’re multitasking and encoding.

What cables are required for dual monitors?

HDMI and DisplayPort are common, supporting 4K and 144Hz. DVI and VGA are older, working with older monitors but without high resolutions or sound.

If ports don’t match, use certified adapters like HDMI-to-DisplayPort to prevent signal issues

Is a docking station needed for dual monitors?

No, you don’t need a docking station for dual monitor setup. But it makes things easier if you use a laptop or stream. Just plug it in once, and you can use multiple screens while charging your device.

It’s like having a central hub that makes switching setups effortless. Plus, many newer models handle 4K at 60Hz on two monitors, making high-res work smooth and hassle-free.

Should dual monitors be next to each other?

Placement is all about your comfort and workflow. Side-by-side is a common setup. It creates a wide display, ideal for gaming on one screen and monitoring chat or alerts on the other.

But some streamers opt for a vertical stack, with the main display below and additional screens above for chat or controls.

Why won’t my second monitor detect?

Loose cables, wrong display settings, incompatible graphics drivers, hardware problems, or monitor power issues. Any of these could be the cause.

If this happens, start by swapping out those cables. Then, double-check your power and input settings because some monitors don’t switch inputs on their own.

Hit the Detect button in your display settings on Windows or Mac to let your computer find the screens.

Why is my second monitor displaying the same thing as my main monitor?

This happens when your screen is set to Duplicate instead of Extend. To fix it, go to display settings. On Windows, press Windows + P and choose Extend. On Mac, uncheck Mirror Displays.

Extending spreads your desktop across both monitors. This is the option for streaming and gaming. But if the problem continues, you can try to update your drivers.
